Sliding Glass Door Systems
MultiGlide™ Door

Engineered for smooth and easy operation, giving you design freedom with the performance and innovation you expect from Andersen.

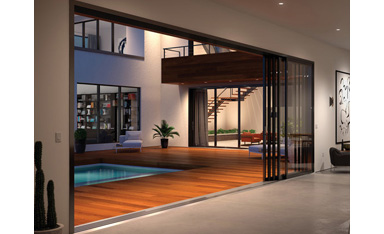

  • Straight stacking or pocketing for a perfectly unobstructed view
  • Contemporary and traditional designs
  • Sized for openings up to 50' wide and 10' tall with sliding glass panels up to 60" wide

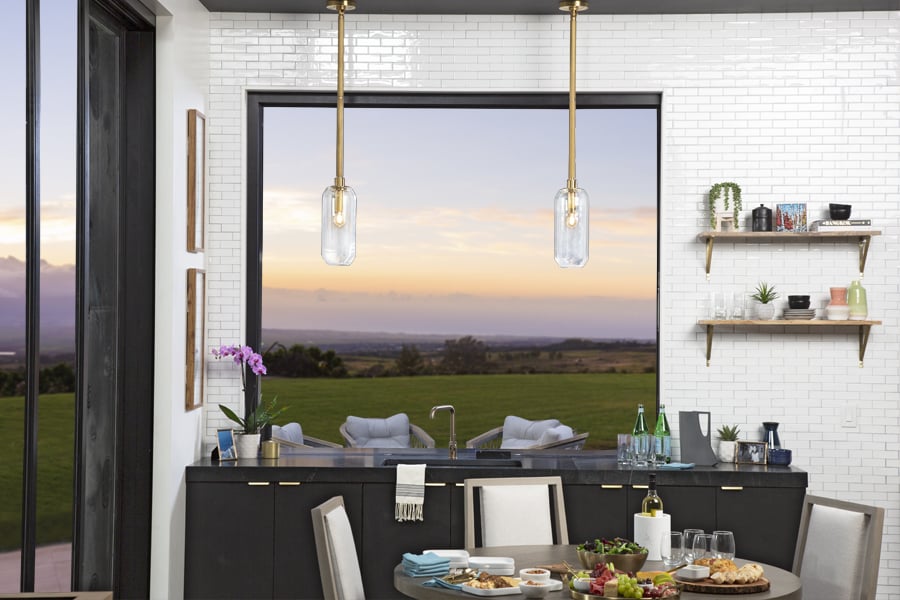

  • Pass-through window configurations available

SEE HOW OTHERS ARE USING THIS PRODUCT

Tag on Tag us on Instagram using #andersenwindows

Panel Styles

Panels are available in contemporary or traditional styles in widths from 28" to 60" wide and 47 ½” to 116 ½” tall. A thermally-controlled frame option is available with clad wood panels for increased thermal performance.

Contemporary Panel

Contemporary Aluminum

Contemporary aluminum panels feature 2 ¾” stiles and rails.

Contemporary Panel

Contemporary Aluminum-Clad Wood

Contemporary aluminum-clad wood panels feature 2 ¾” lock jamb stiles and rails with reinforcements at the interlocks.

Traditional Panel

Traditional Aluminum-Clad Wood

Traditional panels feature 4 11/16” stiles with a choice of 4 11/16”, 8” or 12” bottom rail heights.

8” bottom rail height shown

Configurations

Stacking Configuration

Stacking

Pocketing Configuration

Pocketing

Aluminum Doors

Exterior/Interior Color Options

  • White Color Swatch - 100 Series
    White
  • Sandtone Color Swatch - 100 Series
    Sandtone
  • Terratone Color Swatch - 100 Series
    Terratone
  • Cocoa Bean Color Swatch - 100 Series
    Cocoa Bean
  • Dark Bronze Color Swatch - 100 Series
    Dark Bronze
  • Black Color Swatch - 100 Series
    Black
  • dark bronze anodized color swatch for e-series andersen doors
    Dark Bronze Anodized
  • clear anodized color swatch for e-series andersen doors
    Clear Anodized

Aluminum-Clad Wood Doors

50 Exterior Colors

Our exclusive line of exterior colors offers a broad spectrum of quality, baked-on, silicone polyester enamel exteriors that meet the AMMA 2604 specification. AAMA 2605 color compliance is also available. Our limited warranty covers exteriors for 10 years against chalking and color change and 20 years against cracking, checking, peeling, flaking, blistering and loss of adhesion.

  • colony white color swatch option for andersen windows
    Colony White
  • WHite
    White
  • abalone color swatch option for andersen windows
    Abalone
  • balsa white color swatch option for andersen windows
    Balsa White
  • canvas color swatch option for andersen windows
    Canvas
  • maple syrup color swatch option for andersen windows
    Maple Syrup
  • harvest gold color swatch option for andersen windows
    Harvest Gold
  • prairie grass color swatch option for andersen windows
    Prairie Grass
  • flagstone color swatch option for andersen windows
    Flagstone
  • sandtone color swatch option for andersen windows
    Sandtone
  • pebble tan color swatch option for andersen windows
    Pebble Tan
  • carmel color swatch option for andersen windows
    Carmel
  • terratone color swatch option for andersen windows
    Terratone
  • hot chocolate color swatch option for andersen windows
    Hot Chocolate
  • bourbon color swatch option for andersen windows
    Bourbon
  • acorn color swatch option for andersen windows
    Acorn
  • coffee bean color swatch option for andersen windows
    Coffee Bean
  • cocoa-bean color swatch option for andersen windows
    Cocoa Bean
  • sierra bronze color swatch option for andersen windows
    Sierra Bronze
  • dark bronze color swatch option for andersen windows
    Dark Bronze
  • clay canyon color swatch option for andersen windows
    Clay Canyon
  • red rock color swatch option for andersen windows
    Red Rock
  • cardinal color swatch option for andersen windows
    Cardinal
  • bing cherry color swatch option for andersen windows
    Bing Cherry
  • fire engine red color swatch option for andersen windows
    Fire Engine Red
  • cinnamon toast color swatch option for andersen windows
    Cinnamon Toast
  • olive bing swatch option for andersen windows
    Olive
  • sage color swatch option for andersen windows
    Sage
  • billiard green color swatch option for andersen windows
    Billiard Green
  • moss color swatch option for andersen windows
    Moss
  • forest green color swatch option for andersen windows
    Forest Green
  • mallard green color swatch option for andersen windows
    Mallard Green
  • spearmint color swatch option for andersen windows
    Spearmint
  • aquamarine color swatch option for andersen windows
    Aquamarine
  • patina color swatch option for andersen windows
    Patina
  • sky blue color swatch option for andersen windows
    Sky Blue
  • country blue color swatch option for andersen windows
    Country Blue
  • blue denim color swatch option for andersen windows
    Blue Denim
  • watercolor blue color swatch option for andersen windows
    Watercolor Blue
  • caribbean blue color swatch option for andersen windows
    Caribbean Blue
  • slate color swatch option for andersen windows
    Slate
  • moody blue color swatch option for andersen windows
    Moody Blue
  • stormy blue color swatch option for andersen windows
    Stormy Blue
  • dove-gray color swatch option for andersen windows
    Dove Gray
  • harbor mist color swatch option for andersen windows
    Harbor Mist
  • yorktown pewter color swatch option for andersen windows
    Yorktown Pewter
  • smokey gray color swatch option for andersen windows
    Smokey Gray
  • mystic gray color swatch option for andersen windows
    Mystic Gray
  • dark ash color swatch option for andersen windows
    Dark Ash
  • black color swatch option for andersen windows
    Black
  • color wheel with custom colors available
    Custom

Anodized Finish Options


  • clear anodized color swatch for e-series andersen doors
    Clear Anodized
  • champagne anodized color swatch for e-series andersen doors
    Champagne Anodized
  • light bronze color swatch for e-series andersen doors
    Light Bronze Anodized
  • medium bronze color swatch for e-series andersen doors
    Medium Bronze Anodized
  • copper color swatch for e-series andersen doors
    Copper Anodized
  • dark bronze anodized color swatch for e-series andersen doors
    Dark Bronze Anodized
  • black anodized color swatch for e-series andersen doors
    Black Anodized

Interior Options

Wood Species

Custom colors available.
  • pine wood option for andersen windows and doors
    Pine
  • maple wood option for andersen windows and doors
    Maple
  • oak wood option for andersen windows and doors
    Oak
  • cherry wood option for andersen windows and doors
    Cherry
  • mahogany wood option for andersen windows and doors
    Mahogany*
  • vertical grain douglas fir wood option for andersen windows and doors
    Vertical Grain Douglas Fir
  • alder wood option for andersen windows and doors
    Alder
  • walnut wood option for andersen windows and doors
    Walnut
  • mixed grain douglas fir wood option for andersen windows and doors
    Mixed Grain Douglas Fir
  • hickory wood option for andersen windows and doors
    Hickory

Factory-Finished Stain Options

  • clear coat swatch of interior stain options for andersen doors
    Clear Coat
  • honey swatch of interior stain options for andersen doors
    Honey
  • cinnamon swatch of interior stain options for andersen doors
    Cinnamon
  • russet swatch of interior stain options for andersen doors
    Russet
  • mocha swatch of interior stain options for andersen doors
    Mocha
  • espresso swatch of interior stain options for andersen doors
    Espresso
  • golden hickory swatch of interior stain options for andersen doors
    Golden Hickory
  • autumn oak swatch of interior stain options for andersen doors
    Autumn Oak
  • wheat swatch of interior stain options for andersen doors
    Wheat
  • custom-wood-wheel-showing-options for andersen windows and doors
    Custom

Painted Options

Available on Pine.  Black and Dark Bronze also available on Maple.  Anodized Silver available only on Maple.
  • white swatch of interior stain options for andersen doors
    White
  • birch bark swatch of interior stain options for andersen doors
    Birch Bark
  • Primed swatch of interior stain options for andersen doors
    Primed
  • canvas color swatch option for andersen windows
    Canvas
  • sandtone color swatch option for andersen windows
    Sandtone
  • terratone color swatch option for andersen windows
    Terratone
  • forest green color swatch option for andersen windows
    Forest Green
  • dark bronze color swatch option for andersen windows
    Dark Bronze
  • dove-gray color swatch option for andersen windows
    Dove Gray
  • prairie grass color swatch option for andersen windows
    Prairie Grass
  • red rock color swatch option for andersen windows
    Red Rock
  • cocoa-bean color swatch option for andersen windows
    Cocoa Bean
  • black color swatch option for andersen windows
    Black
  • anodized silver color swatch for e-series andersen doors
    Anodized Silver

Hardware Styles & Finishes

Sleek, low profile hardware design allows panels to be stacked. Keyed and non-keyed options are available.

Hardware sold separately.





  • Andersen Windows Hardware Finishes Oil Rubbed Bronze
    Oil Rubbed Bronze
  • Andersen Windows Hardware Finishes Satin Nickel
    Satin Nickel
  • Black swatch
    Black
  • Andersen Windows Hardware Finishes White
    White
MultiGlide colors

Additional Features

Exterior Keyed Lock

Exterior Keyed Lock

A five-pin exterior key lock is available for all MultiGlide doors. This lock allows the door to be locked and unlocked from the exterior.
MultiGlide Hardware - Locking System

Locking System

The MultiGlide door has an adjustable two-point locking system providing intuitive adjustment. Equipped with laminated stainless steel hooks and an anti-slam device to prevent damage to the side jamb.
Edge Pull

Edge Pull

Premium spring return edge pull is optional on stacking configurations and standard on pocketing configurations to move lead panel out of the pocket. Finish is satin nickel.
Roller Wheels

Roller Wheels

Continuously adjustable synthetic roller wheels with stainless steel ball-bearings provide smooth, quiet operation. Cycle tested 25,000 times for proven operation, the 1 5⁄8" (41) contoured rollers perfectly match the track to reduce lateral vibrations and increase ease of operation. Rollers are capable of handling over 4X the weight of the largest panel.

Glass Options

Panels are silicone bed glazed and finished with an interior stop. Ovolo (colonial) or contemporary glass stops are available on clad wood panels. Contemporary glass stops are used on aluminum panels.

High-Performance glass options include:

Dual-Pane:

  • Low-E4® tempered glass
  • Low-E4 HeatLock® tempered glass
  • Low-E4 Sun tempered glass
  • Low-E4 SmartSun™ tempered glass
  • Low-E4 SmartSun HeatLock tempered glass
  • Low-E4 PassiveSun tempered glass



Triple-Pane for greater energy performance:

  • Low-E4 tempered glass
  • Low-E4 Enhanced tempered glass
  • Low-E4 SmartSun tempered glass
  • Low-E4 SmartSun Enhanced tempered glass

Additional glass options are available. Contact your Andersen supplier.

Insect Screen

Rigid, heavy-duty extruded 6063-T6 aluminum-framed gliding insect screen, equipped with smooth synthetic rollers and premium flush hardware. Features 2 ¾" (70) even sight lines to maximize view. Long-lasting fiberglass screen mesh with a charcoal finish comes standard. Frames are available in all exterior colors and finishes, and in single-panel and multi-panel configurations.

Automated Open/Close System

With the touch of a button, the MultiGlide door can now be opened or closed, creating wide open spaces in the most convenient way.

  • Optional automation feature is available on one-directional and two-directional stacking and pocketing door configurations*
  • Operate using an interior touchpad and weatherproof exterior secure keypad
  • Includes safety features such as overhead motion sensors (interior & exterior) and obstruction detection
  • Battery backup included to keep the system secure
  • Installed by third-party certified installers at the jobsite
  • Backed by a five year limited warranty

  • *Automation is not available for doors with panels that are less than 36” in width and insect screens are not automated with this feature.
AUTOMATION FAQ
multiglide door automation
Will the automation system lock my doors?
Yes. Our system has a magnetic brake that engages every time the door panels are in the closed position.
How do I access the door panels from outside?
We offer a secure keypad for the outside that requires a four-digit code to operate the system.
Can I move the panels manually?
Yes. Our system has a magnetic clutch that disengages the drive shaft from the drive pulley to allow you to move the panels with minimal resistance.
What happens to the system if the power goes out?
The system has a battery backup to keep the system secure. Batteries provide 12 hours of backup power for automation system. The system will recharge the batteries once power is restored.
What is the Power Source needed for the system?
Dedicated 15 amp, 110V (standard outlet, or can be hardwired)
How does the system know if the panels are open or closed?
Our system has a built-in encoder that counts shaft revolutions so the control box always knows where the panels are.
How does the automation system work?
The system works with a belt and pulley system located in the head track.
Can anyone install the automation system?
No. Only certified installers from Andersen’s automation provider, Summit Automation, can install the system.  The automation limited warranty does not apply to unauthorized installations.
If the doors have insect screens, will those insect screen panels be automated?
No, though a door with automation can be ordered with insect screens, the insect screen panels cannot be automated and will have to be manually operated.
Support
For help with Andersen MultiGlide door with Automation please call Andersen Customer Service at 1-855-337-8806.



More Product Details

Sizing

Due to the array of features and options available on the MultiGlide door, we've created a Sizing Calculator to help provide you with complete sizing information.

For site prep guides, please see 'Installation' tab.

view sizing calculator

Panel Section Details

Vertical Sections

panel section aluminum contemporary

Contemporary Aluminum Panel

contemporary panel section clad

Contemporary Clad Wood Panel

traditional panel section 4"

Traditional Clad Wood Panel

4 11 ⁄ 16" Bottom Rail
traditional panel section 8"

Traditional Clad Wood Panel

8" Bottom Rail
traditional panel section 12"

Traditional Clad Wood Panel

12" Bottom Rail
insect screen panel section

Insect Screen Panel

Horizontal Sections

contemporary aluminum horizontal section

Contemporary Aluminum

contemporary clad wood horizontal section

Contemporary Clad Wood

traditional clad wood horizontal section

Traditional Clad Wood

insect screen horizontal section

Insect Screen

Two sill options are available, on-floor drainage sill and flush sill. Both sills are made of heavy-duty extruded 6005-T5 aluminum providing strength and rigidity.

The on-floor drainage sill is designed with built-in drainage channels, spaced out every 17" to 24" depending on overall width, to manage water. Available in clear or dark bronze anodized finishes.

flush sill

Flush Sill

Flush sill is designed to project only 3⁄16" above the finished floor, creating a seamless transition from inside to outside. Available in a clear anodized finish.

Material between the rails is meant to simulate flooring between rails. Please reference installation guides for further information.

Raised Threshold

On-Floor Drainage: Raised Threshold

An optional raised threshold for on-floor drainage sill enhances performance to a PG30 rating for sizes up to 8' tall.**

Exterior Ramp

On-Floor Drainage: Exterior Ramp

Exterior ramp option for on-floor drainage sill provides easy accessibility. Designed to meet 3⁄4" door threshold requirements for sliding doors, as referenced in ANSI A117.1.*

interior ramp

On-Floor Drainage: Interior Ramp

Interior ramp option for on-floor drainage sill provides easy accessibility. Designed to meet 3⁄4" door threshold requirements for sliding doors, as referenced in ANSI A117.1.* Cannot be used with optional raised threshold.

*Sliding door threshold requirement is based on ANSI A117.1 referencing Type A Accessible units; as mentioned by Americans with Disabilities Act (ADA) and Federal Fair Housing Act (FFHA). ANSI A117.1 and FFHA contain other requirements such as clear opening width, operating reach range heights, etc. Sliding door 3/4" (19) thresholds must be beveled with a slope of not greater than 1:2. Specifier needs to select a product and installation that complies with all applicable requirements for ANSI A117.1 and FFHA.

**S1L-1RS 191” x 95.5” MultiGlide door tested to Class LC-PG30.

Big Doors

MultiGlide™ Doors

Product Description Material 3D - Revit 2D - Elevation  2D - Detail File  CSI Guide Spec
Traditional Clad
Interior Stacking
(4 11/16", 8" and 12" bottom rail options)
(4 11/16" stiles and top rail)

One Direction without Screens
One Direction with Screens
Two Directions without Screens
Two Directions with Screens
On-Floor Sill
Flush Sill
Options and Accessories


Aluminum Clad

“multiglide
“multiglide“multiglide“multiglide
 “multiglide“multiglide“multiglide
  “multiglide

Traditional Clad
Exterior Stacking

(4 11/16", 8" and 12" bottom rail options)
(4 11/16" stiles and top rail)

One Direction without Screen
One Direction with Single Screen
On-Floor Sill
Flush Sill
Options and Accessories

Aluminum Clad “multiglide

“multiglide“multiglide“multiglide

 “multiglide“multiglide“multiglide
  “multiglide

Traditional Clad
Pocketing

(4 11/16", 8" and 12" bottom rail options)
(4 11/16" stiles and top rail)

One Direction without Screen
One Direction with Single Screen
One Direction with Multiple Screens
Two Direction without Screen
Two Direction with Single Screen
Two Direction with Multiple Screens

On-Floor Sill
Flush Sill
Options and Accessories

Aluminum Clad “multiglide

“multiglide“multiglide“multiglide

 “multiglide“multiglide“multiglide
  “multiglide

Contemporary Clad
Interior Stacking
(2 3/4" stiles and rails)

One Direction without Screens
One Direction with Screens
Two Directions without Screens
Two Directions with Screens
On-Floor Sill
Flush Sill
Options and Accessories

Aluminum Clad

“multiglide “multiglide“multiglide“multiglide
 “multiglide“multiglide“multiglide
  “multiglide

Contemporary Clad
Exterior Stacking

(2 3/4" stiles and rails)

One Direction without Screen
One Direction with Single Screen
On-Floor Sill
Flush Sill
Options and Accessories

Aluminum Clad “multiglide

“multiglide“multiglide“multiglide

 “multiglide“multiglide“multiglide
  “multiglide

Contemporary Clad
Pocketing

(2 3/4" stiles and rails)

One Direction without Screen
One Direction with Single Screen
One Direction with Multiple Screens
Two Direction without Screen
Two Direction with Single Screen
Two Direction with Multiple Screens

On-Floor Sill
Flush Sill
Options and Accessories

Aluminum Clad “multiglide

“multiglide“multiglide“multiglide

 “multiglide“multiglide“multiglide
  “multiglide
Contemporary Aluminum
Interior Stacking
(2 3/4" stiles and rails)

One Direction without Screens
One Direction with Screens
Two Directions without Screens
Two Directions with Screens
On-Floor Sill
Flush Sill
Options and Accessories

Aluminum

“multiglide “multiglide“multiglide“multiglide
 “multiglide“multiglide“multiglide
 “multiglide

Contemporary Aluminum
Exterior Stacking
(2 3/4" stiles and rails)

One Direction without Screen
One Direction with Single Screen
On-Floor Sill
Flush Sill
Options and Accessories

Aluminum
“multiglide

“multiglide“multiglide“multiglide

 “multiglide“multiglide“multiglide
“multiglide

Contemporary Aluminum
Pocketing

(2 3/4" stiles and rails)

One Direction without Screen
One Direction with Single Screen
One Direction with Multiple Screens
Two Direction without Screen
Two Direction with Single Screen
Two Direction with Multiple Screens

On-Floor Sill
Flush Sill
Options and Accessories

Aluminum  “multiglide

“multiglide“multiglide“multiglide

 “multiglide“multiglide“multiglide
 “multiglide



Service Guides

A Warranty You Can Trust

At Andersen, we pride ourselves in crafting durable, long-lasting products. That resilience allows us to offer some of the best warranties in the industry. They're even transferable should you sell your home. With our exclusive Owner-to-Owner® limited warranties, you get peace of mind, plus real added value.
View Warranty (English) View Warranty (Spanish)
andersen transferable warranty

Big Doors Product Guide For Professionals

Created for trade professionals, product guides provide high-level overviews of the features and options available with each Andersen® product series.  Additionally, they include detailed information on the construction of each product type, along with sizing charts and section details. Product performance data is also included.
Download View Product Guide
