E-Series Awning & Casement window hardware

Video

Interior Exterior

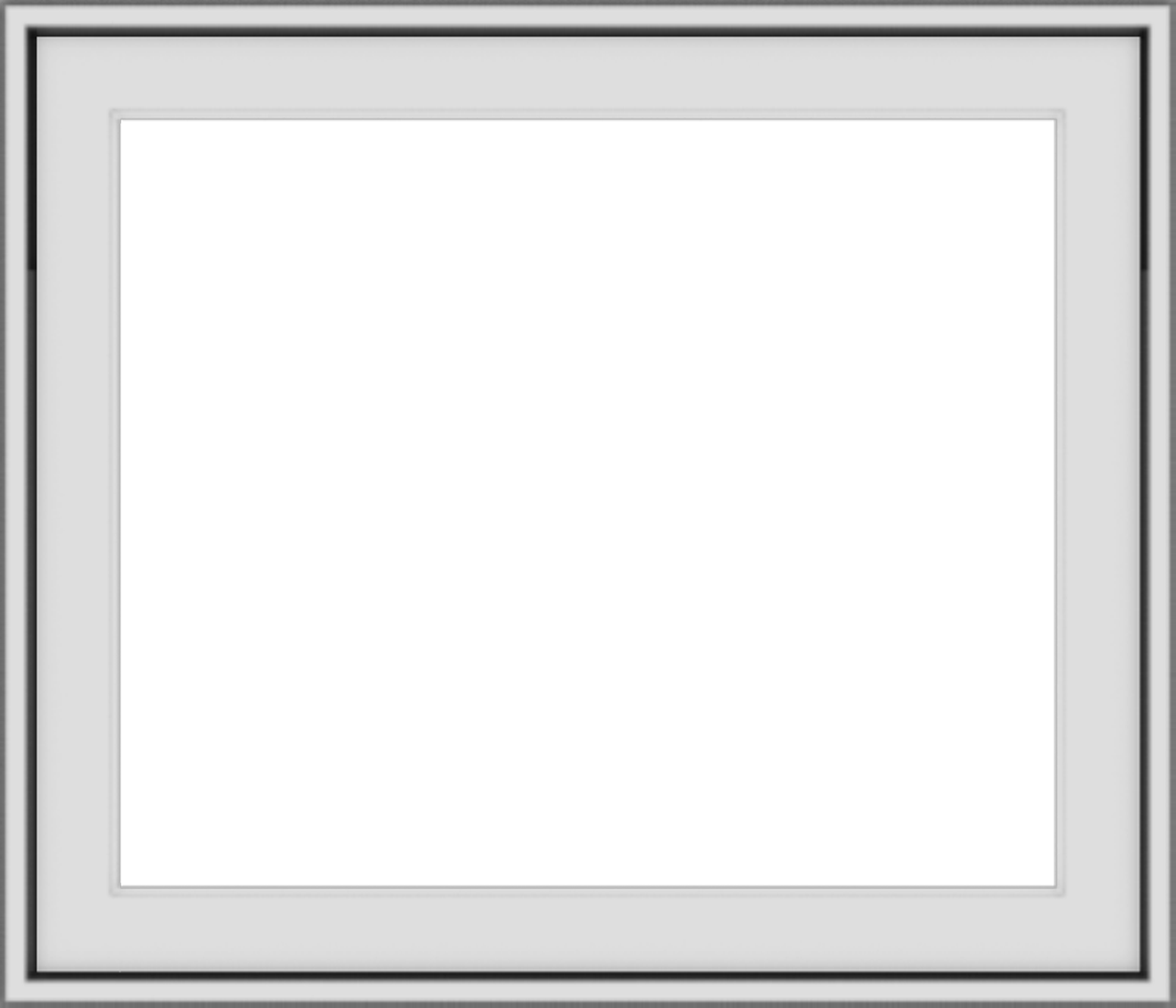

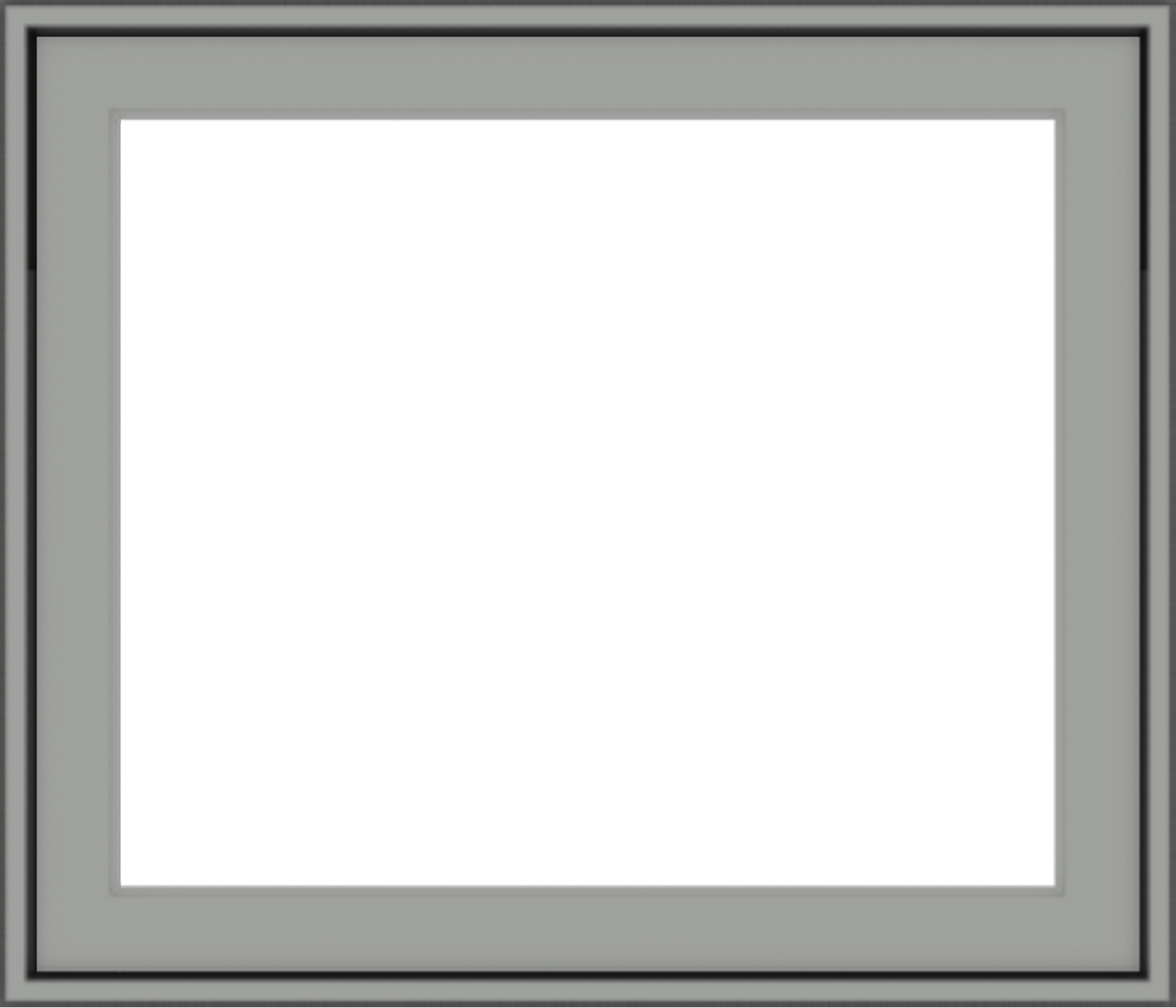

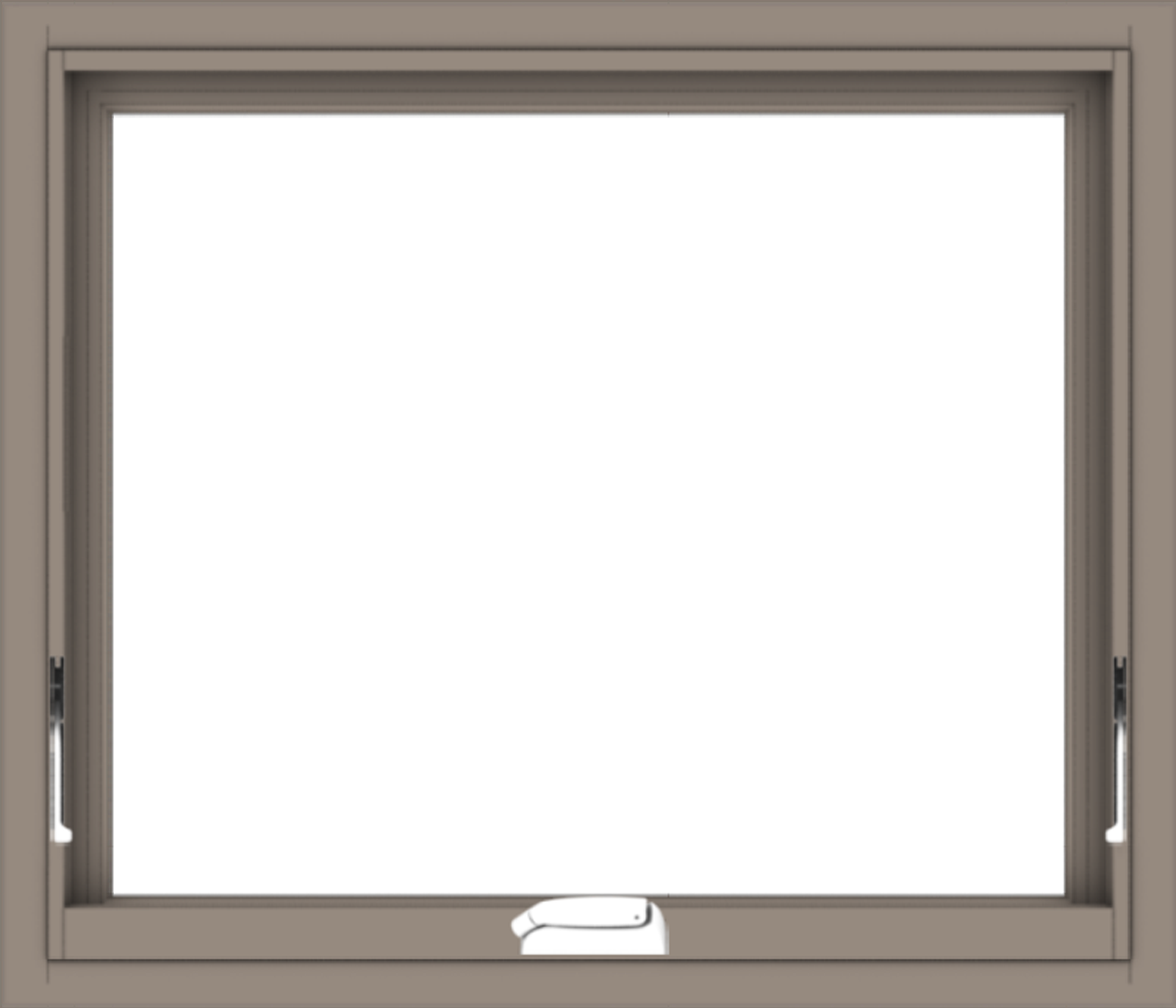

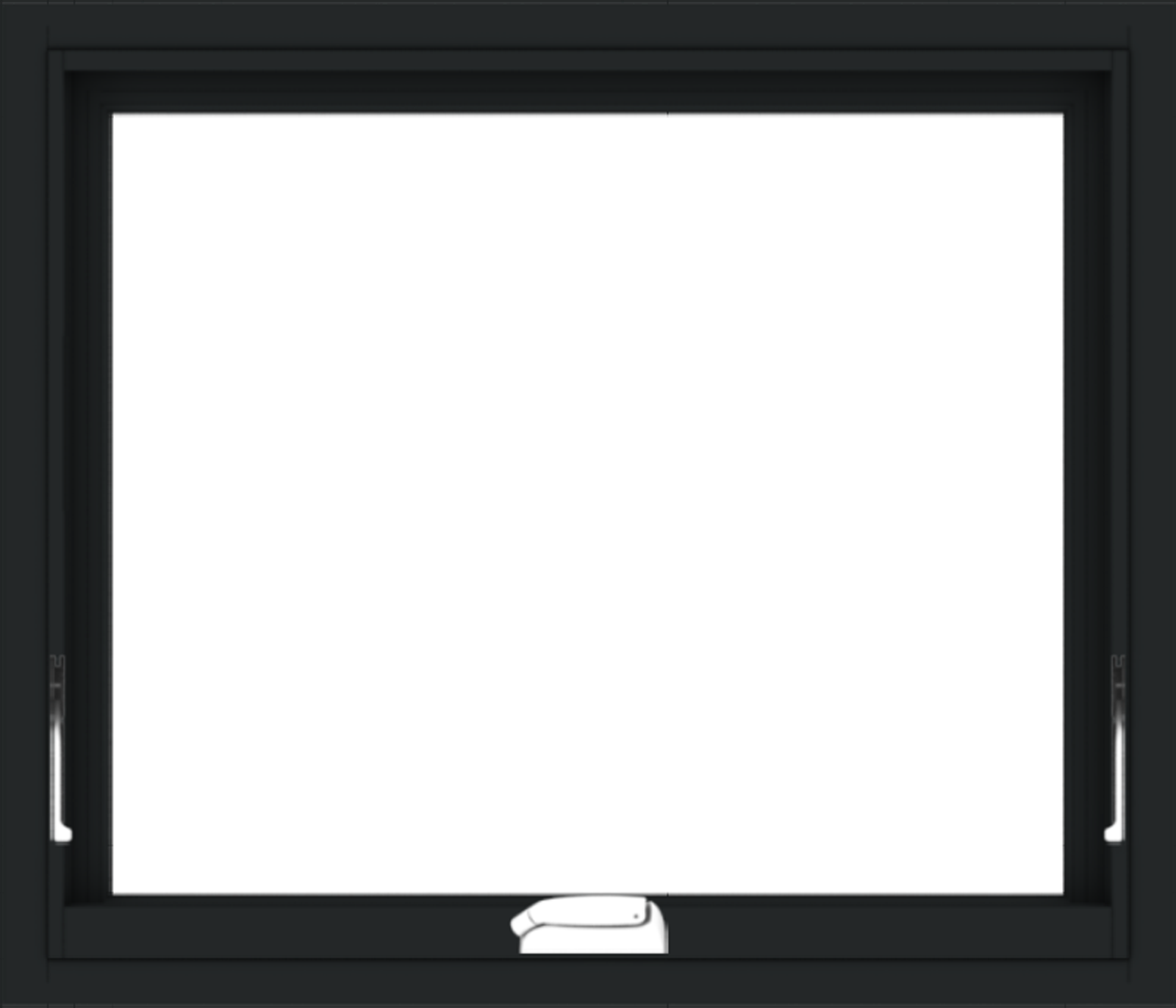

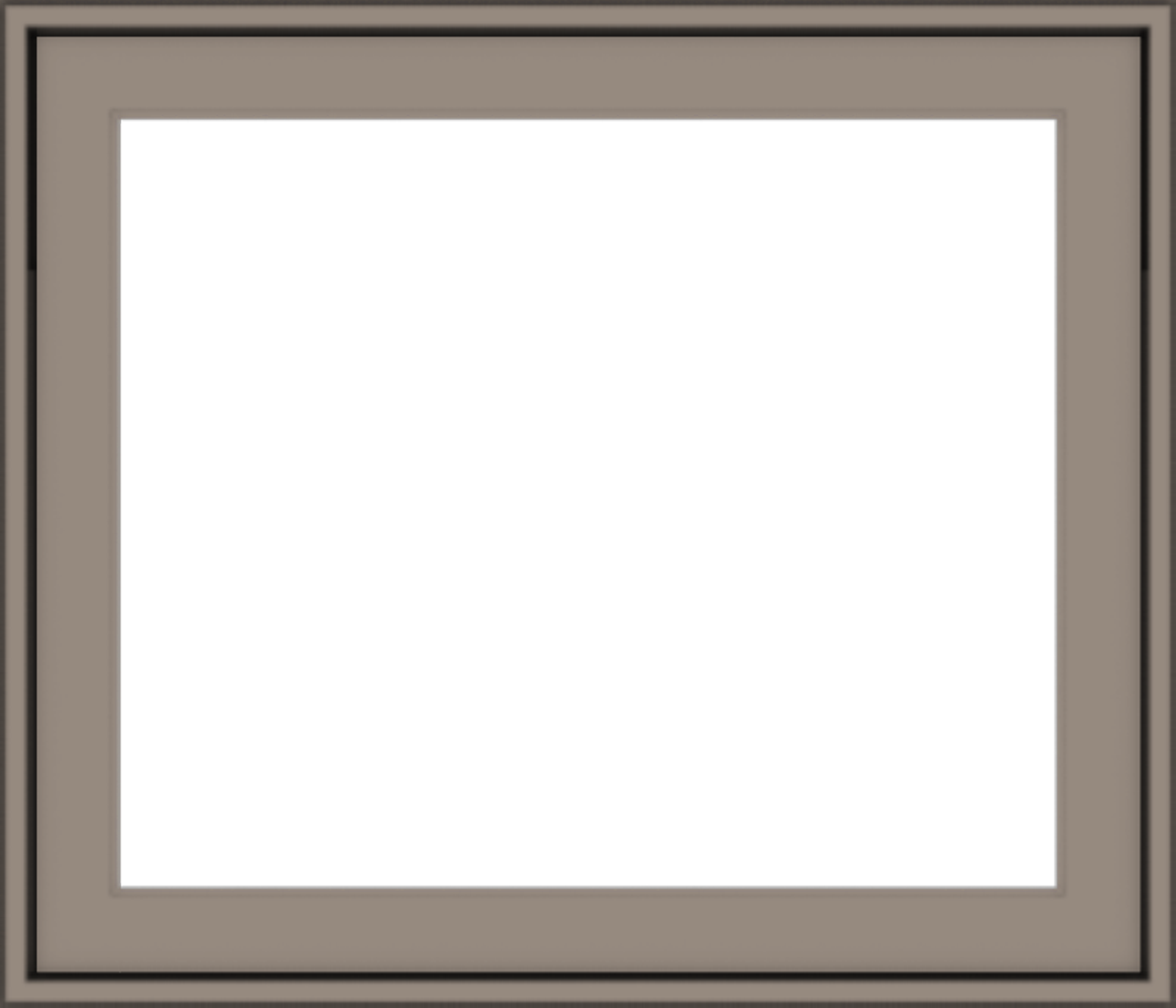

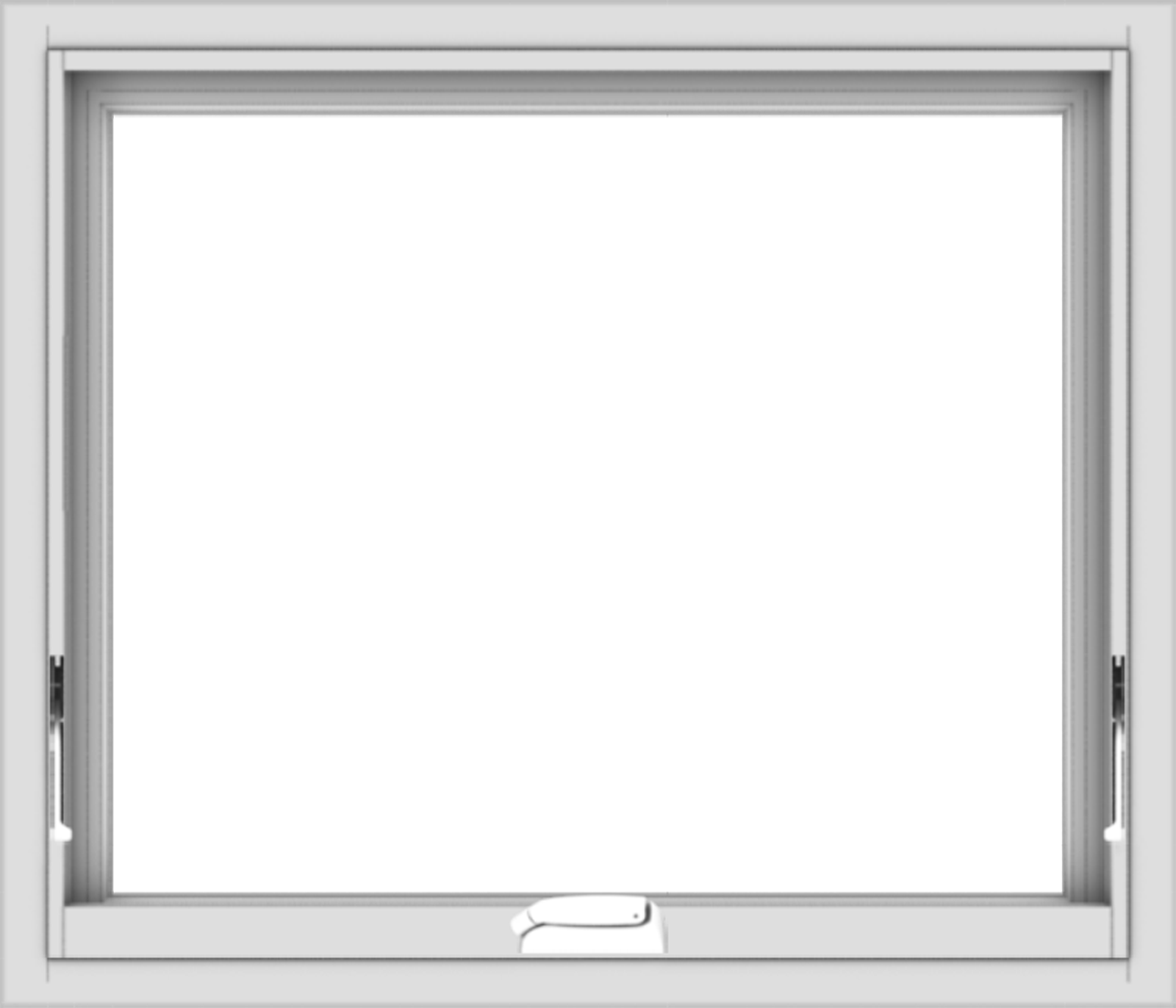

E-Series
Awning Window

The E-Series awning window features a virtually maintenance-free aluminum exterior to resist water and stand up to the elements. Fully customizable and made-to-order in nearly any shape, size, color, interior wood species or finish, the E-Series awning offers unmatched flexibility and design freedom.

Virtually maintenance-free aluminum exterior to resist water and stand up to the elements
Made-to-order in nearly any shape, size, color, interior wood species or finish
Standard sizes up to 4' wide and 4' high. Custom sizes available.

Need help? Find an Andersen Certified Contractor in your area.

DESIGN THIS WINDOW REQUEST A QUOTE

SEE HOW OTHERS ARE USING THIS PRODUCT

^{Tag on} ^{using #andersenwindows}

Colors hardware Grilles Glass

size INSECT SCREENS Blinds & Shades Trim

Colors

*The mahogany name is representative of non-endangered, African mahoganies. Computer monitor limitations prevent exact color duplication. Contact your local dealer for actual color samples.

hardware

Hardware Finishes

Hardware Styles

Crank Handle & Operator Cover

Antique Brass, Black, Bright Chrome, Oil Rubbed Bronze, Satin Chrome, Pewter, White, Polished Brass, Gold, Bronze

Grilles

Grille Types

Full Divided Light

Give any window an authentic look with full divided light grilles that are permanently applied to the interior and exterior of your window with a spacer between the glass.

Simulated Divided Light

An economical solution with traditional beauty, our Simulated Divided Light features fixed exterior and interior grilles without an internal spacer.

Removable Interior Wood Grilles

Our removable wood grilles are installed on the interior surface. They are available with an optional surround and an optional permanently applied exterior grille.

Finelight™ Grilles- Between-the-Glass

Aluminum grilles conveniently placed between two panes of glass make the glass easy to clean inside and out.

Grille Profiles

Interior Wood: Ovolo (Colonial)

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light

Interior Wood: Contemporary

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light

Exterior Aluminum: Chamfer

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light
Removable Interior Wood with Optional Permanently Applied Exterior Grille

Exterior Aluminum: Contemporary

Widths:

5/8"
7/8"
1 1/8"
1 1/2"
2 1/4"

Available with:

Full Divided Light
Simulated Divided Light
Removable Interior Wood with Optional Permanently Applied Exterior Grille

Removable Interior Wood Grilles

Ovolo or Contemporary profiles in 7/8" width

Finelight Grille Profiles and Widths

Flat or Contoured profiles in 5/8" or 1" widths

Grille Patterns

Prairie

Diamond

Colonial

Fractional

Victorian

Custom Patterns

Andersen gives you complete flexibility to design your own custom grille style. You sketch it, our craftsmen will create it.

Glass

Glass Performance Options

	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
SmartSun™	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
SmartSun with HeatLock™ Coating	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Low-E4®/Low-E	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Low-E4 with HeatLock™ Coating	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Sun	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
PassiveSun®	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.
Triple-Pane (with Low-E coatings on two surfaces)	U- FACTOR How well a product prevents heat from escaping.	SOLAR HEAT GAIN COEFFICIENT How well a product blocks heat caused by sunlight.	VISIBLE LIGHT TRANSMITTANCE How much visible light comes through a product.	UV PROTECTION How well a product blocks ultraviolet rays.

Learn more about glass options. Center of glass performance only. Ratings based on glass options available as of June 2015.

Decorative and Specialty Glass

Safety Glass
Tempered safety glass is available on all products, and comes standard on all patio doors.

Laminated Glass
Laminated glass is also available, for added strength, enhanced security and sound control.

Sound-Reducing Glass
This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.

Art Glass
Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.

Patterned Glass
Let in light while obscuring vision and adding a unique decorative touch to your home.

size

Design This Window

View standard size charts

Don't see your size?
View custom sizing information

INSECT SCREENS

Insect Screens

Charcoal fiberglass screen mesh fits into an aluminum frame in colors of bronze, white or gold as well as optional black. Aluminum screen mesh and wood-veneered insect screen also available as options.

E-Series retractable casement window screen

Retractable Insect Screen

Made specifically for casement and awning windows, this insect screen is a sleek addition to any home. In place, the insect screen helps keep insects out. When retracted, it provides a beautiful clear view.

TruScene®

Enjoy more fresh air and natural light in your home with TruScene insect screens. This patented screen is made with micro-fine stainless steel mesh that lets in over 25% more fresh air and provides 50% greater clarity than conventional Andersen insect screens, all while keeping out unwanted small insects. Available with bronze, white, black or gold or wood-veneered frames to blend with the wood interior of the window.

Blinds & Shades

System 3 Blinds & Shades

Add privacy and even greater energy efficiency with this low-maintenance blind or shade solution. Applied to the interior of the sash, the System 3 design creates a triple-glazed window for incredible energy efficiency. Our 5/8" blinds and pleated shades are mounted to an extruded aluminum storm panel and applied to the interior of the sash. The removable storm panel is available in tan, gold, white, or optional wood-veneer.

Trim

Interior Trim

Wood Casings

A subtle touch around the perfect window or door makes your view even more special.

Shown above, from top to bottom:

½” and 3 ¼" Fluted Casing

11/16" and 2 ¼" Colonial Casing (WM366)

11/16" and 2 ¼" Colonial Casing (WM356)

11/16" and 2 ¼" Ranch Casing (WM324)

Plinth Blocks

Add plinth blocks at the corners for just the right touch of detail.

2 ½” and 3 ½" plinth blocks shown

Exterior Trim

2-, 3- & 4-Tone Exteriors

With our 2-, 3- and 4-tone color combinations, the sky's the limit. Mix and match up to four of our 50 exterior colors for a combination look that's all your own.

2” brick mould and 1 ½” sill nose shown on casement.

3 ½” backband & bead casing and 1 ½” sill nose shown on double-hung.

5 ½” flat casing and 1 ½” sill nose shown on casement.

2” ovolo brick mould and 1 ½” deep sill nose shown on double-hung.

3 ½” brick mould and 1 ½” deep sill nose shown on double-hung.

Coastal Windows and Doors with Stormwatch® Protection

Andersen® windows and doors with Stormwatch® protection offer many of the same options and accessories as our standard products with the added upgrades needed along the coast and other parts of the country where Mother Nature is particularly difficult.

Designed to satisfy:
• ASTM/E1886/E1996 large missile test for wind zone 4
• TAS 201, 202, 203 large missile test for high velocity hurricane zone (HVHZ)
• AAMA/WDMA/CSA 101/I.S.2 A440-08

For more information, contact your Andersen supplier.

Design Your Own

Use our easy step-by-step design tool to create your own E-Series awning window. Explore and select from a wide variety of options including interior and exterior colors, hardware styles and finishes, grille patterns and trim.

Start Designing

Andersen Windows Design Tool - E-Series Awning Window

Photo Gallery

Products: E-Series Awning Windows, E-Series Picture Windows
Interior Color: White

View Details

Products: E-Series Awning Windows, E-Series Picture Windows
Exterior Color: Custom
Options: Specified Equal Light Grille Pattern, Colonial Grille Pattern

View Details

Products: E-Series Awning Windows, E-Series Picture Windows
Hardware Color: Oil-Rubbed Bronze

View Details

More Product Details

Info Sheet

Use this quick reference guide to learn about the available colors, finishes, glass, and hardware options for this product.

View Options

andersen gliding patio doors comparison chart

Product Comparison

Compare features and options of awning windows across Andersen series.

Compare Awning Windows

Series Brochure

View our E-Series brochure online for an overview of options, accessories and performance details for this series

Explore This Series

A Warranty You Can Trust

At Andersen, we pride ourselves in crafting durable, long-lasting products. That resilience allows us to offer some of the best warranties in the industry. They're even transferable should you sell your home. With our exclusive Owner-to-Owner® limited warranties, you get peace of mind, plus real added value.

View Warranty

See a Project Featuring this Product:

Vantage Point

Kirkland, Washington

With black exteriors and white interiors, E-Series windows together in creative combination and placement to allow an abundance of natural light to illuminate the home's contemporary style and materials.

PRODUCTS SHOWN

E-Series Awning Window E-Series Picture Window

View Details

PRODUCTS SHOWN

E-Series Picture Window

View Details

PRODUCTS SHOWN

E-Series Awning Window E-Series Casement Window E-Series Picture Window

View Details

Technical Library

Browse our extensive technical library for performance ratings, installation guides, operation instructions and care and maintenance guides.

View Documents

Replacement Parts

We believe so strongly in our products that we still offer parts for windows and doors built decades ago.

Call 1-888-888-7020 to order parts for this product. When prompted, select the “Eagle/E-Series” option from the menu.

ENERGY STAR®

Learn about ENERGY STAR® and certification requirements where you live.

FIND OUT MORE

E-Series Product Guide For Professionals

Created for trade professionals, product guides provide high-level overviews of the features and options available with each Andersen® product series. Additionally, they include detailed information on the construction of each product type, along with sizing charts and section details. Product performance data is also included.

Download View Product Guide
